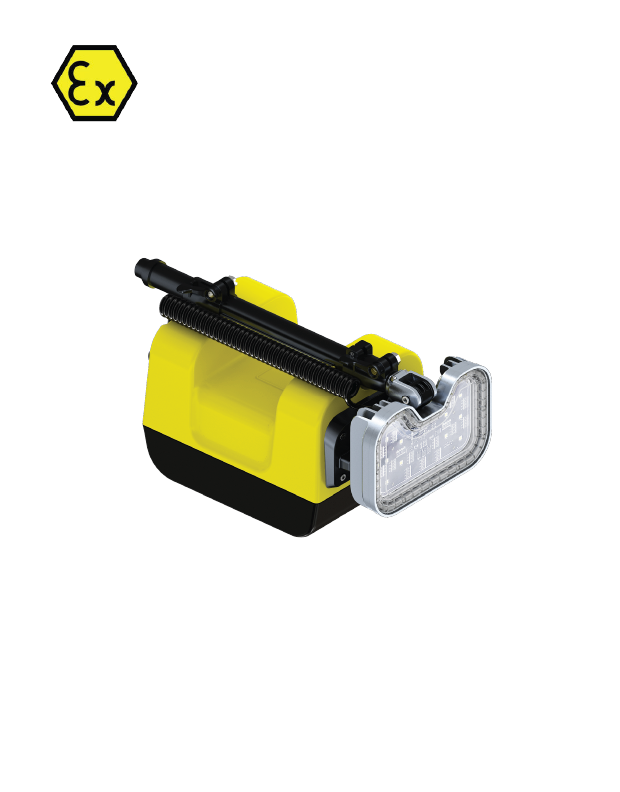

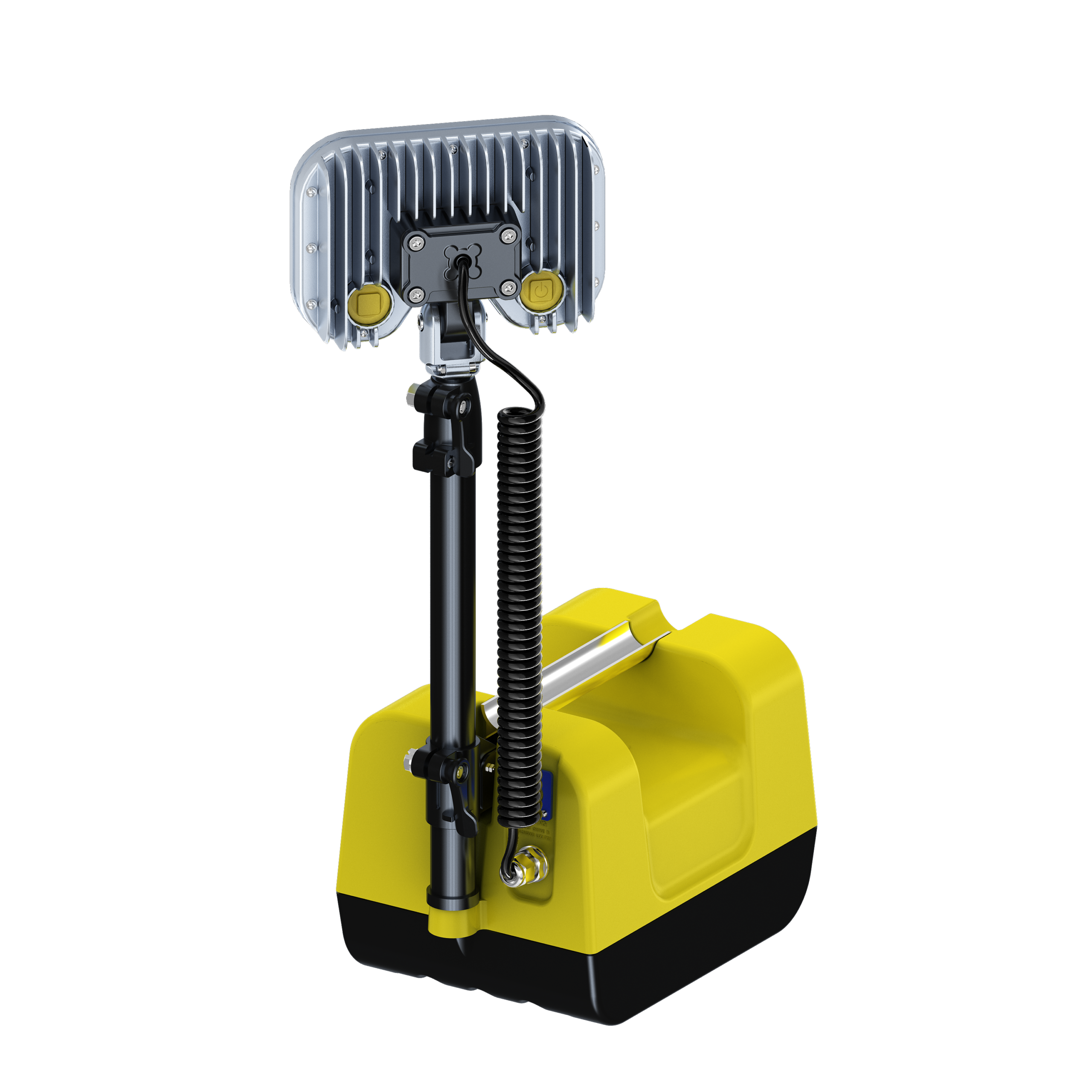

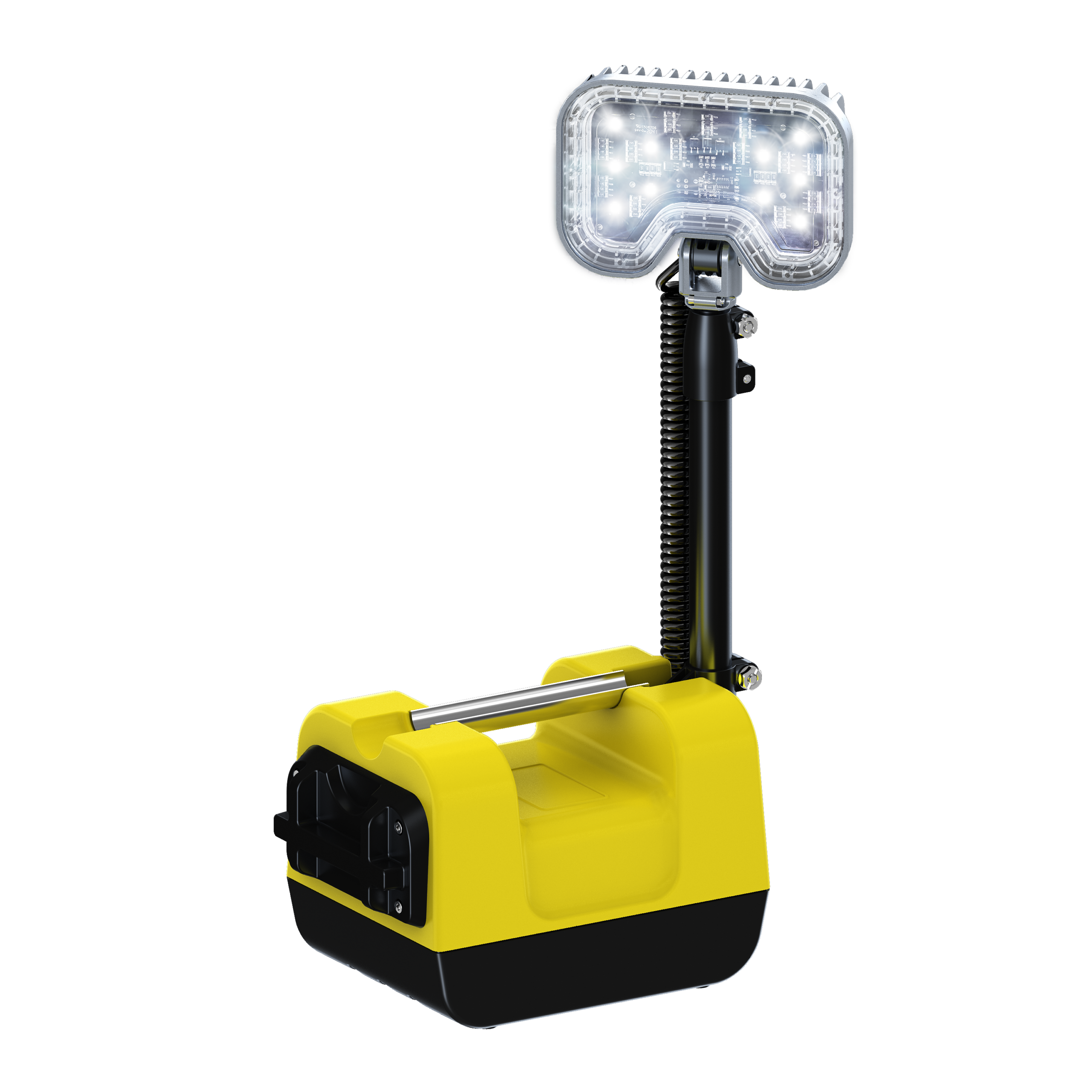

Explosion-Proof Remote Area Lights | EX-MV01 Series

For dangerous industrial environments, visibility becomes the first essential prerequisite for any kind of activity to proceed with ease. From a repair job at midnight to an excavation project within a deep tunnel or a volatile chemical plant, the EX-MV01 Series luminaires are designed to transform even the most challenging working environments into a hub of activity.

The EX-MV01 is an industrial-standard, explosionproof remote area light that has been developed for unparalleled visibility and safely functioning for workers. This line of portable lights is the first choice for those whose working sites are not sufficiently lighted, and it’s also an ideal light for nighttime working conditions since it has advanced certification for safe functionality that doesn’t cause ignition.

Impeccable Safety Cert

When in an inflammable or explosive region, equipment certification is your best protection. Designed with strict international certifications in mind for equipment in hazardous environments, the EX-MV01 has:

- ATEX Marking: Rated II 1G Ex ia IIC T4 Ga.
- IEC Ex Marking: Ex ia IIC T4 Ga.
- North American UL 913 Marking: UL Listed for Class I, Division 1, Groups A, B, C, and D, T4.
- Zone Rated: Classified for Class I, Zone 0, AEx ia IIC T4 Ga.
- Extreme Resilience: Works effectively under the freezing cold temperature of -4°F (-20°C) to the hot temperature of 104°F (40°C).

Truly Powerful Performance & Intelligent Optics

Visibility involves more than just brightness, as its concern is with the quality and extent to which light is projected. An enormous beam angle of 125° is available with the EX-MV01, and its lighting output removes any potential shadows.

- High Efficiency Output: Provides lumens from 500 to 1,600 lumens.
- Multifunctional Light Modes: It has three fixed light output modes namely, “High,” “Low,” and “Flashing.”
- Precision Targeting: It comes equipped with a 360° rotational head that provides easy ajustment to a preferable angle of illumination.
- Color Quality: Provides a Color Temperature (CCT) of 3000K to 6500K.

Ensuring a Reliable Source of Power during Extended Working

What good is a light if it has limited life before it needs its batteries replaced? Batteries for the EX-MV01 are 10.8V, 9Ah with NiMH rechargeability.

- Extended Run Time: Work for up to 10 hours in Low mode or up to 5 hours in High mode on a single battery charge.
- “Smart Low Battery Warning”: It has a visible indicator that flashes 30 times every 10 minutes when the battery is down to 30 minutes of power remaining.
- Efficient Charging: Charging time: 7 hours with 1.8A, 14 hours with 0.9A.
- Battery Life: Has a rated lifespan of 500 cycles.

Made for the Real World

The EX-MV01 is ready for the “dirty” world of industry. The EX-MV01 incorporates a high-visibility yellow housing. This means the unit will be a visible safety feature on site.

Ingress Protection: Both the lamp head unit and the power box itself feature IP65 protection against dust and water, while the overall casing is IP20.
Functional Flexibility: Enables multiple deployment points and can be used for different inflammable and explosive environments.
Accessory Components: Comes with components for USA chargers, EU chargers, as well as a replacement battery component.

The EX-MV01 Series is the ultimate solution for those who require dependable lights where the stakes are the highest. Indeed, its lights provide safety and visibility from hour one to hour twelve.
