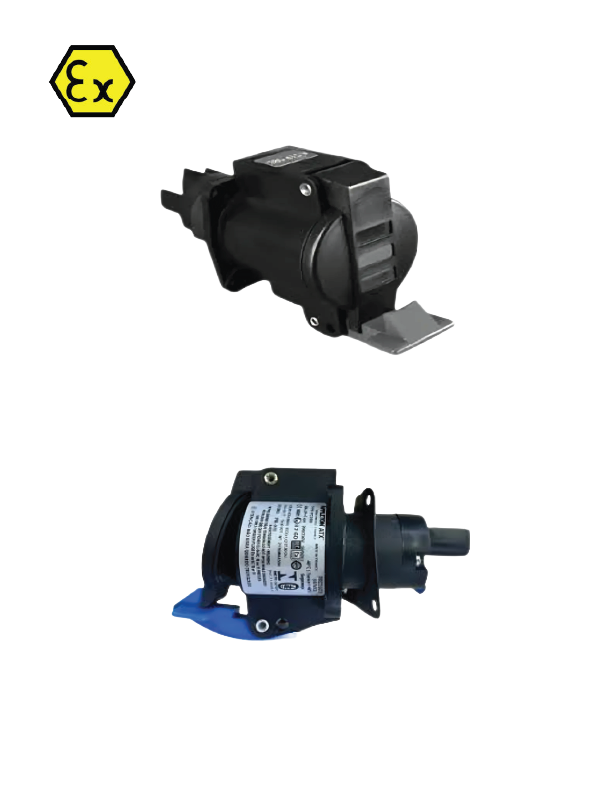

Appleton™ PRE316MY 16 A Mobile Socket (2P+E, 100–130 VAC)

The PRE316MY is a mobile socket from the award‑winning Appleton ATX™ PRE Series, designed to provide safe, reliable electrical connections in explosive atmospheres. With comprehensive ATEX/IECEx certification and built for harsh environments, this solution is ideal for industrial sectors such as oil & gas, petrochemical plants, mining, and marine operations.

Certifications & Hazardous Area Ratings

ATEX / IECEx certified for use in Zone 1 & 2 (Gas) and Zone 21 & 22 (Dust) — classified as II 2 GD Ex de IIC T6/T5 / Ex tD A21 IP66
Ingress Protection: Rated IP66, fully sealing against dust and powerful water jets
Impact Resistance: IK09/IK10, offering robust protection in rugged environments
Operating Temperature Range: –40 °C to +55 °C (–40 °F to +131 °F), with T6 rating up to +40 °C and T5 up to +55 °C

Technical Specifications

Rated Current: 16 A
Voltage Range: 100–130 VAC (Low‑voltage category, color‑coded Yellow)
Configuration: 2P + E (Live, Neutral, Earth)
Frequency: 50/60 Hz compatible (some variants support up to 500 Hz)
Cable Gland Entry: Integrated PG16 gland, accommodating cables with diameter Ø 6.5–14.5 mm (~Ø 0.26–0.57 in)
Termination Capacity: Conductors up to 2.5 mm², suitable for standard portable power applications
Socket Type: Mobile (M variant), lightweight ~0.4 kg (~0.9 lb), volume ≈1.3 dm³ (~79 in³)

Safety & Performance Features

Safe Disconnect Mechanism: Each phase is electrically separated inside flameproof chambers, ensuring the circuit opens before external contact exposure, significantly mitigating arc/flame risks
Short-Circuit Resilience: Designed for high fault protection—20 kA interrupting capability (common operation reference around 10 kA)
IEC Standard Keying & Color Coding: Yellow coding and keyed receptacles prevent mis-mating with incorrect voltage systems; the socket only accepts ATX plugs, ensuring compatibility and avoiding misuse
Compatibility with IEC 309: ATX plugs and sockets can safely mate with standard IEC 309 devices in non-hazardous zones when required

Typical Applications

The PRE316MY is ideal for use in classified environments and portable electrical equipment across industries including:

Lighting rigs, compressors, pumps, heaters, conveyor drives, and motor generators in petrochemical, offshore, and mining environments
Operating under corrosive, damp, or dusty conditions thanks to its sealed design and impact-resistant materials
Situations requiring frequent plug/unplug cycles where safe disconnect is critical

Integration with the PRE Series Family

This mobile socket fits seamlessly into the broader PRE Series ecosystem:

Compact and mobile-ready variant of the PRE316 family, featuring 16 A, low-voltage configurations
PRE316PY is the plug version, PRE316RY is the wall socket, PRE316FY is the flush socket, and PRE316MY is the mobile socket you’re viewing
Other voltage variants in the series include PRE316PB (200–250 VAC, Blue), PRE416RB (380–415 VAC, Red), etc., all with keying and color coding for safe identification

Key Benefits at a Glance

Benefit	Description
Certified Safety	ATEX/IECEx for Zones 1 & 21 – 2 & 22, safe disconnect design for flameproof operation
Rugged Construction	Polyamide housing with IP66 and IK09/10 protection ratings for resilience
High Fault Tolerance	Up to 20 kA short-circuit rating ensures operational safety under stress
Color-Coded & Keyed	Yellow-coded low-voltage design prevents cross-voltage mating errors
Portable & Lightweight	Ideal for field‑use; small form factor, easy to handle on job sites

Ordering & Installation Information

Catalog Code: PRE 316 M Y
- “316” = 16 A, low voltage
- “M” = Mobile socket
- “Y” = Yellow key coding for 100–130 VAC
Cable Entry: One integrated PG16 gland (Ø 6.5–14.5 mm)
Terminal Blocks: Accept conductors up to 2.5 mm², with linked earth continuity
Installation Notes: Mount via panel or portable equipment; ensure proper grounding and compliance with local electrical codes
