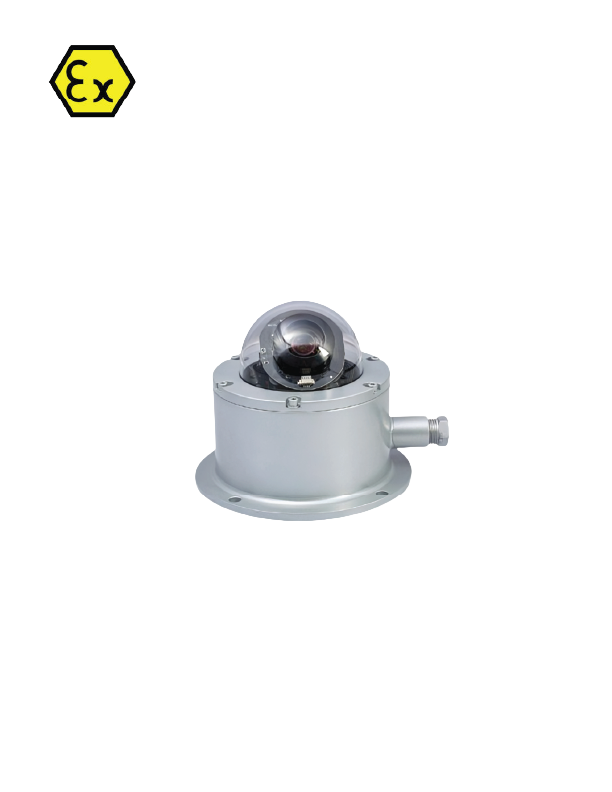

Marine Grade Anti-Corrosion Mini PTZ IR Dome Camera

The KDQ-EX-PTZ4012IR04 is a 4MP explosion proof PTZ camera with 12X optical zoom, 5-60mm focal length, IR for night vision, and PoE support. With a Field of View (H: 59.99°~5.73°, V: 35.03°~3.39°, D: 67.01°~6.61°), it ensures clear surveillance in hazardous environments. Supplier of Marine Grade Anti-Corrosion Mini PTZ IR Dome Camera.

Marine Grade Anti-Corrosion Mini PTZ IR Dome Camera

Marine Grade Anti-Corrosion Mini PTZ IR Dome Camera

The KDQ-EX-PTZ4012IR04 is a 4MP explosion-proof PTZ camera, designed for hazardous environments requiring high-quality surveillance. It features a 12X optical zoom with a 5-60mm focal length, ensuring clear and detailed monitoring over variable distances.

Equipped with infrared (IR) technology for superior night vision, this camera delivers crisp imaging in low-light conditions. Its Power over Ethernet (PoE) support allows for easy installation with minimal cabling, making it a cost-effective and efficient solution for industrial sites.

The field of view ranges from Horizontal: 59.99°~5.73°, Vertical: 35.03°~3.39°, and Diagonal: 67.01°~6.61°, ensuring comprehensive area coverage. Designed to withstand harsh weather and explosive environments, this rugged explosion-proof camera meets ATEX and IECEx safety standards, making it ideal for oil & gas, chemical plants, and other high-risk industries.

As a trusted supplier, Sensor Control LLC provides high-performance explosion-proof surveillance solutions across the UAE and globally. Contact us for advanced PTZ cameras and hazardous area security systems tailored to your needs.

DNV Certified Marine

The DNV-certified marine and explosion-proof camera is designed for hazardous environments, ensuring reliable surveillance in extreme conditions. It features rugged construction, high-resolution imaging, and resistance to water, dust, and explosions. Ideal for offshore, marine, and industrial applications, it enhances safety, security, and operational efficiency in critical areas.

Explosion Proof Camera

Explosion proof camera is a specialized surveillance device designed for hazardous environments with flammable gases, dust, or vapors. Built with robust enclosures, it prevents ignition of surrounding explosive atmospheres. These cameras are ATEX, IECEx, or UL-certified, ensuring safety in industries like oil & gas, chemical plants, and mining operations.

Contact Information:

Materia

Stainless Steel 316L

Protection Class

IP68

Temp.range min

-30℃

Temp.range max

+60℃

Vibration(0-100Hz)

0.7g

Video

IP

Operational Areas

Outdoor

Mounting

Wall mounted ,Ceiling Mounted

Wiper

N/A

Pan/Tilt

Remote operated

Rotation Vertical

0-90°

Rotation Horizontal

0-355°

Surface

powder coating

Resolution

2MP,4MP ,etc

Zoom

5x ,12x

Image Sensor

1/2.8" Progressive Scan CMOS

Min. illumination

Color: 0.05lux @(F1.2, AGC ON), 0 lux with IR

CCTV add-on

Anti-Flicker ,heartbeat,mirror ,privacy mask etc

Voltage

PoE /DC12V

Net Weight

3.5kg

Certificates

DNV TA/ATEX/CE/FCC

EX Mark

Ex II 2G Ex db op is IIC T6 Gb II 2DEx tb op is IIIC T80°C Db IP68 IP66
