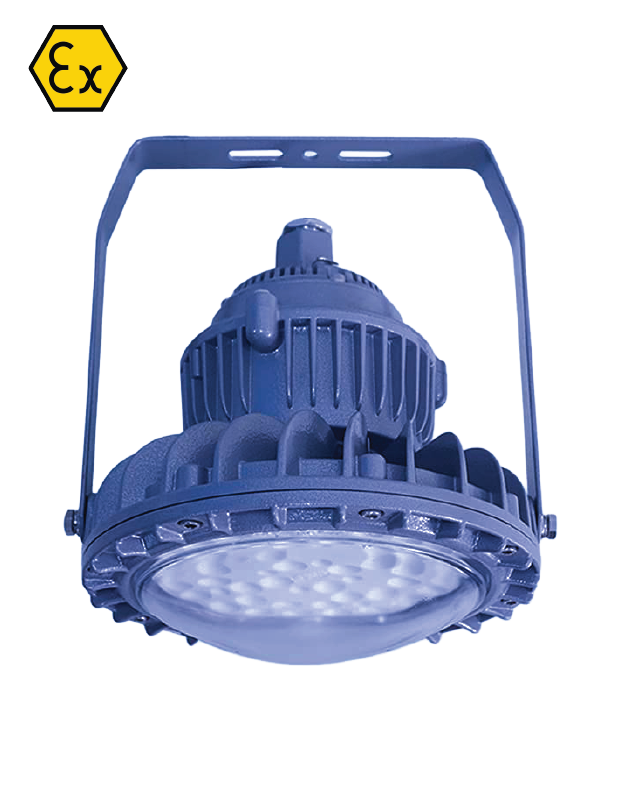

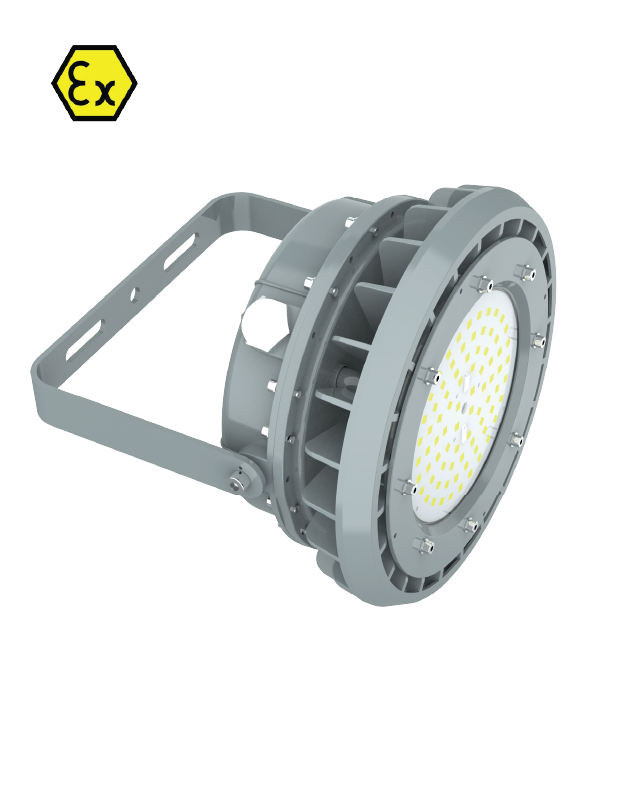

Explosion Proof High Bay Lights

  • ATEX/IECEx, UL, ABS Certified; Zone 1, 2, 21 & 22
  • Voltage Range: 100-277VAC; 12-48VDC
  • Wattage Range: 20W-400W
  • Lumens Efficiency: 140lm/W
  • Battery backup function is available upto 180 minutes (3HRS)
  • Marine rated powder coated finish treatment (Optional)
  • Housing: Copper-free Aluminum
    Lens: Tempered Glass
    Hardware: Stainless Steel
    Mounting Bracket: Stainless Steel
  •  Up to 5 years warranty
Category

Explosion Proof High Bay Lights

Explosion Proof High Bay Lights

Explosion-proof high bay lights are specifically designed to provide powerful and efficient illumination in hazardous industrial areas. These lights are ideal for use in environments where explosive gases, vapors, or combustible dust are present, typically classified as Zone 1 & Zone 2 or Zone 21 & Zone 22. Built to adhere to stringent international safety standards, these lights combine durability, safety, and energy efficiency to meet the demands of high-risk workplaces.


Key Features

1. Compliance with International Safety Standards

  • Certified for gas groups IIA, IIB, and IIC, with temperature classes T1 to T6.
  • Designed for safe use in explosive gas and dust environments, meeting GB3836.1 and IECEx/ATEX certifications.

2. Rugged Construction

  • Constructed with marine-grade aluminum or stainless steel for excellent resistance to corrosion, chemicals, and extreme weather.
  • Impact-resistant tempered glass ensures long-lasting performance.

3. Superior Illumination

  • High-lumen LED technology delivers uniform, bright light ideal for high-ceiling applications.
  • Wide beam angles provide comprehensive area coverage.
  • Anti-glare designs reduce eye strain for operators and workers.

4. Flexible Installation Options

  • Supports various mounting methods, including ceiling, suspended, or surface mounting.
  • Adjustable brackets allow for easy angle adjustments.

5. Energy Efficiency

  • Energy-efficient LEDs reduce electricity consumption and operational costs.
  • Long lifespans minimize maintenance frequency, improving overall cost efficiency.

6. Ingress Protection

  • Rated IP66 or higher for superior resistance to water, dust, and impact, ensuring reliable operation in harsh environments.

Benefits

1. Enhanced Safety

  • Explosion-proof housings prevent any internal sparks or heat from igniting flammable materials.
  • Safe and reliable operation in hazardous zones.

2. Exceptional Durability

  • Built to withstand harsh industrial conditions, reducing the need for frequent replacements.
  • Corrosion-resistant materials ensure performance longevity even in offshore or coastal areas.

3. Cost-Effective Operation

  • Advanced LED technology reduces energy use while maintaining high performance.
  • Low maintenance requirements further lower operational costs.

4. Versatility in Application

  • Suitable for warehouses, oil refineries, chemical plants, offshore platforms, power plants, and mining facilities.
  • Ideal for high-ceiling installations where bright, reliable lighting is critical.

5. Eco-Friendly Design

  • Reduces carbon emissions with energy-saving technology.
  • Made from recyclable materials to minimize environmental impact.

Contact Information:​

Material Enclosure / Diffuser

Aluminum alloy with epoxy powder
coating / Polycarbonate

Rated voltage

220 V – 240 V AC 50 Hz / 60 Hz
110 V AC 50 Hz / 60 Hz

Luminous efficacy

140 lm / W

Battery voltage

12 V DC

Battery capacity

1.2 Ah

Wattage

>5 W

Duration

>60 min

Ambient temperature

-40 ºC to +55 ºC

Class of insulation

I

Degree of protection

IP67

Conformity to standards

IEC 60079 / IEC 60598

International approvals

ATEX, IECEX, CB, CCC, CNEX
