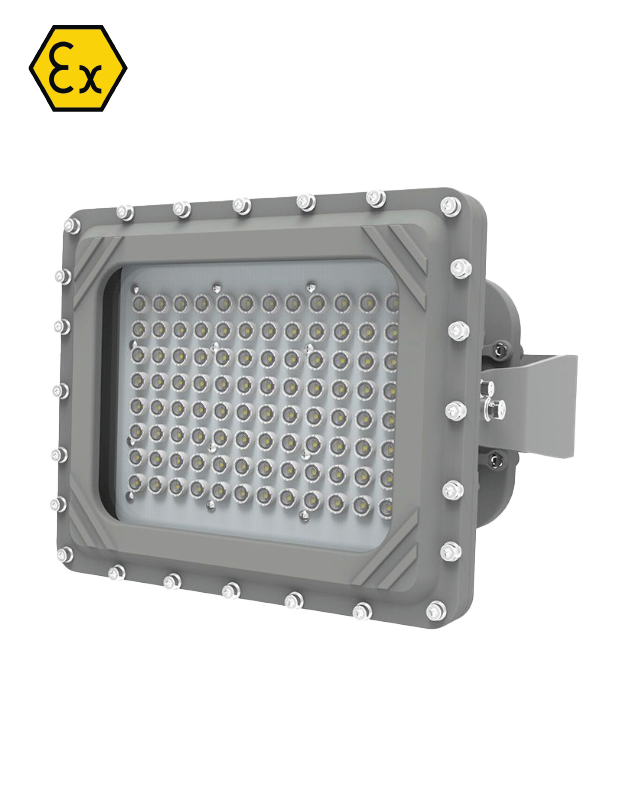

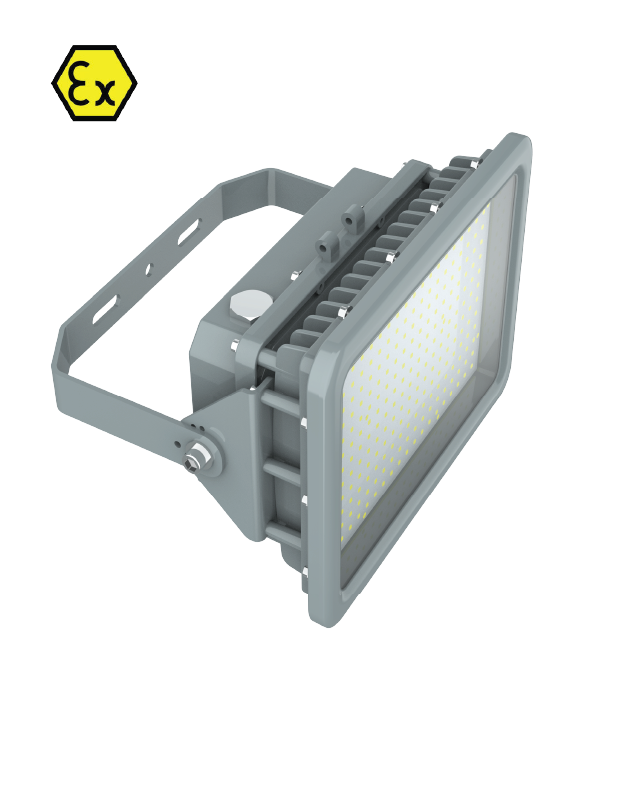

Explosion Proof Flood Lights

  • ATEX/IECEx, UL, ABS Certified; Zone 1, 2, 21 & 22
  • Voltage Range: 100-277VAC; 12-36VDC
  • Wattage Range: 200W
  • Lumens Efficiency: 140lm/W
  • Battery backup function is available upto 180 minutes (3HRS)
  • Marine rated powder coated finish treatment (Optional)
  • Housing: Copper-free Aluminum
    Lens: Tempered Glass
    Hardware: Stainless Steel
    Mounting Bracket: Stainless Steel
  •  Up to 5 years warranty

Explosion Proof Flood Lights

Explosion Proof Flood Lights

Explosion proof flood lights are designed to deliver high-performance illumination in hazardous zones while ensuring maximum safety. These lights are suitable for environments where explosive gases, vapors, or dust may be present, typically classified as Zone 1 and Zone 2, or Zone 21 and Zone 22. Built with durability and reliability in mind, they adhere to stringent international safety standards.

Key Features:

  1. Compliance with GB3836.1 Standards:
    • Certified for gas groups IIA, IIB, and IIC, covering temperature classes T1 to T6.
    • Designed for safe operation in dusty or gaseous hazardous environments.
  2. Robust Construction:
    • Made from corrosion-resistant materials such as marine-grade aluminum or stainless steel.
    • Designed to withstand extreme weather, high humidity, and corrosive chemicals.
  3. Advanced Optics:
    • High-lumen LED technology ensures bright, uniform illumination.
    • Anti-glare lenses minimize visual fatigue for workers.
  4. Versatile Mounting Options:
    • Supports multiple mounting configurations such as bracket, pole, and surface mounting.
    • Adjustable beam angles to focus light on critical operational areas.
  5. Energy Efficiency:
    • Incorporates energy-efficient LEDs to reduce power consumption and operating costs.
    • Offers long lifespans with minimal maintenance requirements.
  6. Ingress Protection:
    • High IP ratings (IP66 or higher) ensure resistance to water, dust, and impact.

Benefits:

  1. Enhanced Safety:
    • Explosion-proof enclosures prevent any internal sparks or heat from causing ignition.
    • Certified for use in high-risk areas.
  2. Durability:
    • Engineered for a long operational life, reducing replacement frequency in demanding conditions.
  3. Cost Efficiency:
    • Energy-efficient LED technology cuts down on electricity and maintenance costs.
    • Low heat emission improves overall efficiency.
  4. Wide Application Range:
    • Suitable for oil refineries, petrochemical plants, marine industries, offshore platforms, mining sites, and more.
  5. Eco-Friendly:
Material Enclosure / Diffuser

Aluminum alloy with epoxy powder
coating / Polycarbonate

Rated voltage

220 V – 240 V AC 50 Hz / 60 Hz
110 V AC 50 Hz / 60 Hz

Luminous efficacy

140 lm / W

Battery voltage

12 V DC

Battery capacity

1.2 Ah

Wattage

>5 W

Duration

>60 min

Ambient temperature

-40 ºC to +55 ºC

Class of insulation

I

Degree of protection

IP67

Conformity to standards

IEC 60079 / IEC 60598

International approvals

ATEX, IECEX, CB, CCC, CNEX

Coding

Ex ec mb IIC T4 Gc
