Explosion Proof Double Compression Cable Gland

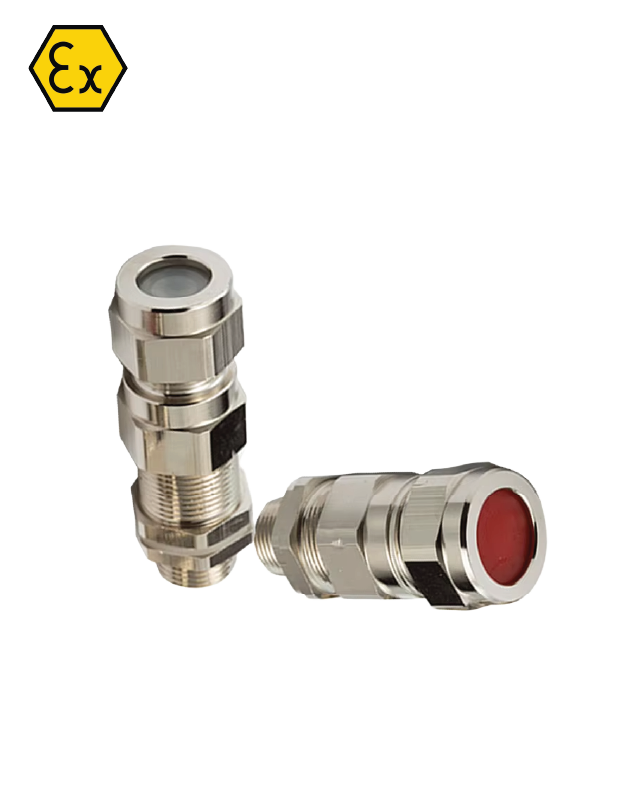

E1FUNV Double Compression Cable Gland For all types of IEC Armoured Cables Provides a flameproof (Type ”D”) seal on the cable inner bedding. Allows mechanical cable retention and earth continuity via the cable armor termination. Reversible armour cone and clamping ring arrangement facilitates remote make off and enables the cable to be disconnected from the equipment. Stepped cone is suitable for SWA cables. Grooved cone is suitable for all other approved armored cables.

Category

Explosion Proof Double Compression Cable Gland

Explosion Proof Double Compression Cable Gland

Sensor Control is a globally recognized manufacturer of Flameproof / Explosion-Proof Cable Glands designed for hazardous environments, including Zone 0, Zone 1, Zone 2, Zone 20, Zone 21, and Zone 22 applications. Our explosion-proof cable glands comply with international safety standards and are IECEx, ATEX, and PESO certified, ensuring superior quality and reliability.

With over 15 years of expertise in the field, Sensor Control provides technical support and guidance to ensure the safe and correct installation of explosion-proof cable glands. Our products are manufactured in accordance with IEC standards, offering top-tier protection for both armoured and unarmoured cables.

We offer custom-designed Ex cable glands in all sizes (M12 to M100) and various thread types, including Metric, PG, NPT, BSP, and BSPT. In addition to explosion-proof cable glands, we manufacture industrial cable glands and a full range of accessories such as shrouds, lock nuts, earth tags, serrated washers, adaptors, reducers, and O-rings.

At Sensor Control, we combine cutting-edge technology with precision engineering in our state-of-the-art manufacturing facility to deliver durable, high-performance cable management solutions for hazardous environments worldwide.

Size Chart / Specification



CODE CABLE GLAND SIZE ENTRY THREAD “C” THREAD LENGTH “E” CABLE BEDDING DIAMETER “A” OVERALL CABLE DIAMETER “B” GROOVED CONE (X) STEPPED CONE (W) M N
METRIC NPT OPTIONAL NPT MIN MAX MIN MAX MIN
MM-EX-E1FUNV-20S16 20S16 M20 1/2″ 3/4″ 17 20 3.2 8.6 6.2
MM-EX-E1FUNV-20S 20S M20 1/2″ 3/4″ 17 20 6.2 11.6 9.6
MM-EX-E1FUNV-20 20 M20 1/2″ 3/4″ 17 20 8.0 13.9 12.5
MM-EX-E1FUNV-25S 25S M25 3/4″ 1″ 17 21 11.2 19.6 14.0
MM-EX-E1FUNV-25 25 M25 3/4″ 1″ 17 21 11.2 19.6 18.3
MM-EX-E1FUNV-32 32 M32 1″ 1.1/4″ 17 26 17.1 26.0 23.7
MM-EX-E1FUNV-40 40 M40 1.1/4″ 1.1/2″ 17 26 22.1 31.6 28.0
MM-EX-E1FUNV-50S 50S M50 1.1/2″ 2″ 17 26 29.5 37.5 35.2
MM-EX-E1FUNV-50 50 M50 2″ 2.1/2″ 17 27 35.6 43.1 40.5
MM-EX-E1FUNV-63S 63S M63 2″ 2.1/2″ 17 27 40.1 48.7 45.6
MM-EX-E1FUNV-63 63 M63 2.1/2″ 3″ 17 40 47.2 55.2 54.6
MM-EX-E1FUNV-75S 75S M75 2.1/2″ 3″ 17 40 52.8 61.2 59.0
MM-EX-E1FUNV-75 75 M75 3″ 3.1/2″ 17 42 59.1 67.2 66.7
MM-EX-E1FUNV-90 90 M90 3.1/2″ 4″ 24 44 66.6 79.2 76.2

Contact Information:​

Type

E1FUNV Double Compression Cable Gland
Cable Types

For all types of IEC armoured cables.
Option Thread

Metric, NPT, BSP, BSPT
Gland Material

Brass (CuZn39Pb3), Stainless Steel (304 or 316L), Aluminium (6082)
IP Rating

IP66 & IP67
Sealing Ring

Double Compression Sealing (Sealing on both outer and inner sheath)
Operating Temperature

Standard Seals (Nitrile): -20°C To 80°C. on Request (Silicone) : – 60°C to +180°C
Finish

Natural Brass or Nickel Plated or Electroless Nickel Plated
Accessories

PVC S/ LSF Shroud, Lock Nut, Earth Tag, Serrated Washer, Adaptor / Reducer.
IECEx Certificate No.

IECEx PRE 20.0124X
ATEX Certificate No.

Presafe 20 ATEX 48906X
EAC Certificate No.

RU C-IN.AA71.B.00212/20
Protection Type

Ex d, Ex e, Ex t
